Thermal Double layer CTP Plates

Writer： admin Time：2020-11-06 17:28 Browse：℃

Thermal Double layer CTP Plates Type :Thermal Double layer CTP Plates
Thermal Double layer CTP Plates Application :High grade commercial and newspaper printing

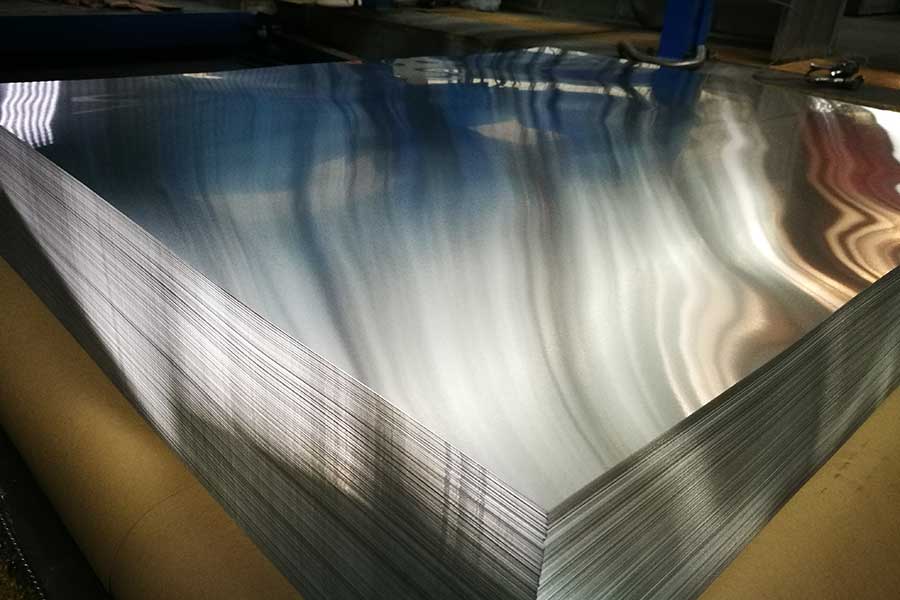

Thermal Double layer CTP Plates Substrate :Electro chemically Grained and Anodized lithographic Aluminum

Aluminum alloy of Thermal Double layer CTP Plates:Standard 1050 Alloy

Thermal Double layer CTP Plates Coating :Two-layer system, IR sensitive, positive acting

Gauge of Thermal Double layer CTP Plates :0.15,0.20, 0.25,0.30, 0.40 (mm)

Maximum short grain width :Maximum width 1280 mm

Plate intermix :Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates,
Kodak PP3 positive plates, Agfa Energy Elite, etc.



Length of Run ：
Ordinary Ink: 100,000 to 200,000 impressions
UV Ink : 50,000 to 100,000 impressions

Exposure energy :110 - 130 mJ/m²

Spectral Sensitivity  :800-850 nm – Peaks 830nm

Resolution  :1-99% at 200 LPI

FM capability  :20 micron stochastic

Image color :Blue Green to Pale Green

Processing temperature :23°C +/- 2°C

Developing time :25 - 30 sec

Processing Speed  :0.80 – 1.20 m/min
Safelight:  Daylight handling

Shelf Life ：12 months under recommended storage conditions

Packaging：Available in all standard formats, including bulk packaging options

Storage and handling ：stored in a cool and dry environment, away from excessive cold, heat and humidity.
