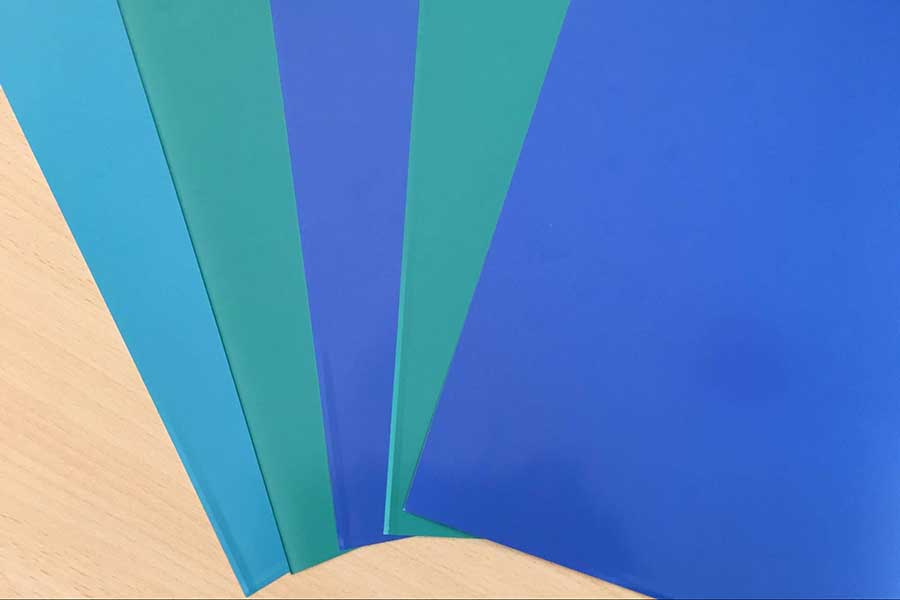

1 The Product Introduction of Chemistry Free UV-CTP Plate
The Chemistry Free UV-CTP Plate produced by Henan Chalco is a new type of green and environmentally friendly printing product. After exposure and imaging, it does not need to be washed with developer, and only needs to go through a simple gluing process to print on the machine.
Compared with the traditional UV-CTP plate, the developing process of this plate after exposure is a physical process, not a chemical process. The coating of the unexposed part of the plate becomes soft through the infiltration and penetration of the glue, and it needs to be removed by a brush with a certain pressure. Therefore, the performance of the revised plate is not easily affected by the developing temperature, developing time, and developer replenishment amount, and the plate-making process is more stable.



2 The Technical parameters of Chemistry Free UV-CTP Plate
Plate type: Chemistry Free UV-CTP Plate
Alloy temper: 1060, 1050A, 1100 H18
Plate thickness: 0.15 mm, 0.30 mm, etc.
Available specifications: various specifications, or according to customer’s specifications
Maximum width: 1350mm
Spectral Sensitivity/Photosensitive wavelength: 350 ～ 420 nm
Substrate: Aluminum plate after electrolytic roughening and anodizing and sealing treatment
Sensitivity/Exposure energy:20-40 mJ / cm2
Resolution: 2 ～ 98% @ 200 lpi
Plate developing: not required
Latent Image Stability: 7 days
Plate-making contrast: The plate-making contrast is obvious, and can be measured with a density meter and a dot meter
Storage conditions: The temperature of the storage room is not higher than 25 ℃, and the relative humidity is not higher than 60%.
Shelf life: 12 months, stored under recommended storage conditions
Run Length: 100,000 impressions, related to specific printing conditions
Baked version: Not recommended



3 The Product Advantages of Chemistry Free UV-CTP Plate
1) The Chemistry Free UV-CTP Plate produced by our company can shorten the preparation time of plate making and improve the plate making efficiency;
2) The Chemistry Free UV-CTP Plate produced by our company can reduce the processing equipment and liquid medicine, and save the cost of plate making;
3) The Chemistry Free UV-CTP Plate produced by our company can effectively reduce emissions and pollution and create green printing;
4) The Chemistry Free UV-CTP Plate produced by our company can minimize the impact of processing conditions on the performance of the plate material, and improve the quality of the printing plate and the stability of the plate making.

4 The Usage of Chemistry Free UV-CTP Plate
The Chemistry Free UV-CTP Plate produced by our company is suitable for various (UV-CTP) CTCP plates etters and user needs, and is widely used in commercial, packaging, newspaper and UV ink printing.


5.The Packaging of Chemistry Free UV-CTP Plate

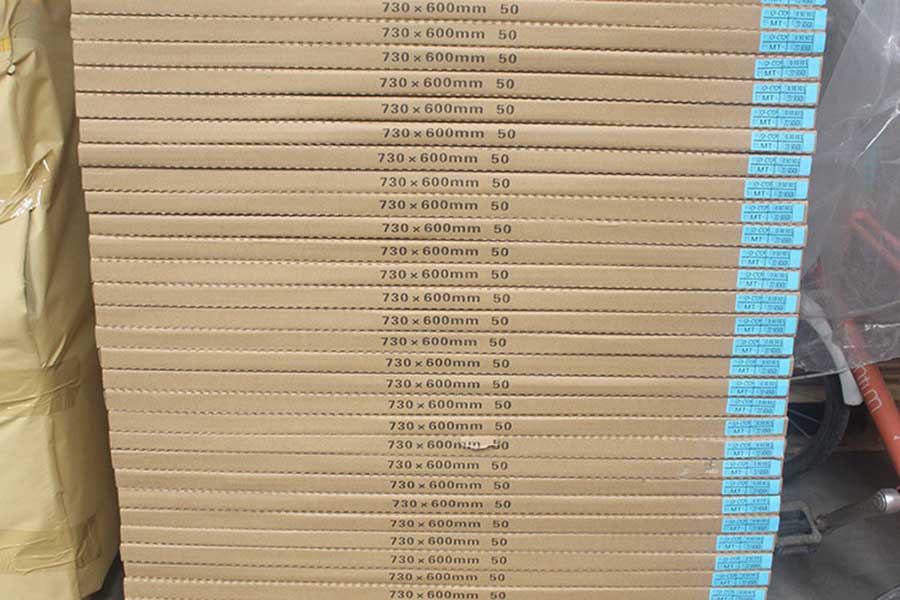

The packaging of Chemistry Free UV-CTP Plate produced by our company: two coated faces are placed facing each other, separated by neutral backing paper in the middle, the outside is covered with plastic lined black kraft paper and placed in the carton box,each carton box is loaded around 50 -100 pieces,
Then stack the loaded carton boxes neatly on the wooden pallet and protect them with wooden frames or cardboard.
Finally, wrap it with kraft paper or plastic film and tighten by plastic tapes.
Or Packed according to customer requirements.
