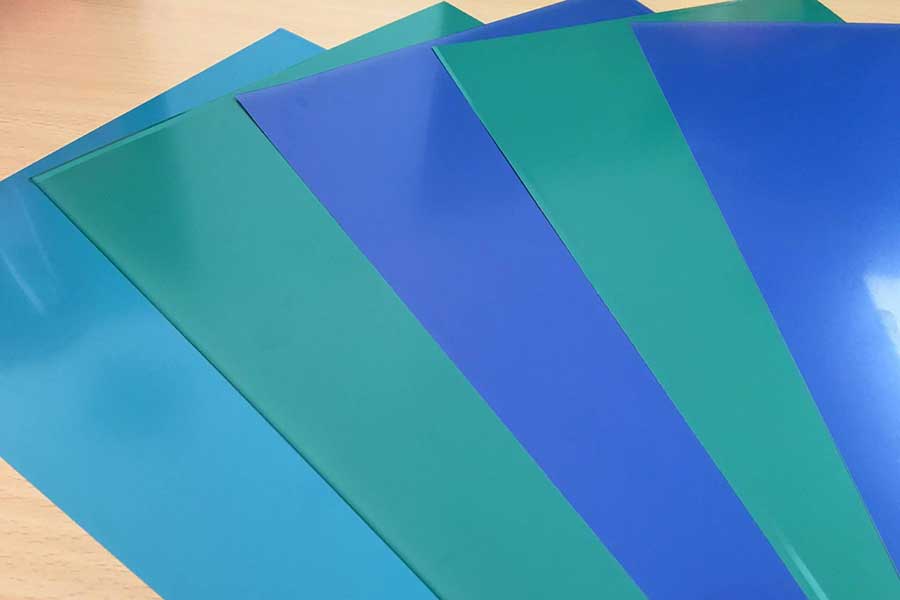

1 The Product Introduction of Thermal Chemistry Free CTP Plates
The Thermal Chemistry Free CTP Plates is a new generation of environmentally friendly printing products developed by Henan Chalco's original photopolymerization cutting-edge technology. Customers of thermal plate-making machines can use this product to expose plates. The latitude of the processing-free feature provides a plate-making option that can be directly printed on the press without developing or developed with low chemistry before it is used. With its outstanding stability, the Thermal Chemistry Free CTP Plates can ensure high print durability and consistent quality and is compatible with UV inks at the same time, allowing you to be more competitive, reduce costs, increase efficiency, and achieve "green" printing.



2 The Technical Parameters of Thermal Chemistry Free CTP Plates
Printing type: Negative, no processing, thermal / ultraviolet digital printing plate
Applications: Commercial, newspaper and packaging printing
Aluminum Substrate: Electrochemical roughening sand and anodizing CTP aluminum Substrate
Alloy temper:: 1060, 1050A, 1100 H18
Thickness: conventional 0.15mm, 0.3mm and 0.4mm and 0.2mm, 0.24mm, 0.27mm, can be cut according to printing user requirements
Available specifications: various specifications, or according to customer’s specifications
Maximum width: 1350mm
Coating color: light green
Spectral Sensitivity/Photosensitive wavelength: 830nm (800-850nm)
Sensitivity/Exposure energy: 160 -180 mJ / cm² (830 nm thermal sensitivity)
Latent image stability period: ≤7 days
Resolution: 1% to 99% @ 200 lpi
Developer: No developing is required,
Run Length :unbaked up to 100,000 impressions
UV ink unbaked up to 50,000 impressions
Operating environment: natural light up to 4 hours; yellow light safety light up to 24 hours
Shelf life: 18 months, stored in a dry and cold place, storage temperature 5 ~ 30 ℃, humidity 40% ~ 80%)

3 The Product Advantages of Thermal Chemistry Free CTP Plates
1) The Thermal Chemistry Free CTP Plates produced by our company has a higher run length
The Thermal Chemistry Free CTP Plates produced by our company is loyal to the original intention of stable and durable design, and can reach a maximum of 100,000  impressions of a set. This means that you can save more remaking and printing downtime.

2) The Thermal Chemistry Free CTP Plates produced by our company has consistent high quality and strong stability
The Chemistry Free Thermal CTP Plates produced by our company, with its consistently high imaging quality, makes short-form printing even more outstanding. With 200lpi (1-99%) resolution and screening technology, you can get ultra-high print quality. Because there is no need for subsequent processing such as developing and gumming, the stability and durability of our Thermal Chemistry Free CTP Plates is indeed superior to traditional processed plates



3) The Thermal Chemistry Free CTP Plates produced by our company has outstanding performance in UV printing
Physical stability is not the only advantage of our Thermal Chemistry Free CTP Plates. It also has excellent chemical resistance, so it can be used with traditional or new generation UV inks.

4) The Thermal Chemistry Free CTP Plates produced by our company has better scratch resistance
The Thermal Chemistry Free CTP Plates produced by our company has high-performance multi-layer coating. In the previous generations of treatment-free plates, accidental touch sometimes damaged the coating, but the Thermal Chemistry Free CTP Plates can effectively reduce the risk of scratches.

5) The Thermal Chemistry Free CTP Plates produced by our company has more efficient plate making
The Thermal Chemistry Free CTP Plates produced by our company can maximize the efficiency of offset printing. No maintenance, no need of developing machine, developing medicine, protective glue and water. It also represents the fastest line from platemaking to printing. After simple imaging, it is directly printed on the machine. Under the premise of having the same capacity as other high-quality plate materials, the Thermal Chemistry Free CTP Plates produced by our company can save your costs, reduce labor, accelerate production, and improve environmental friendliness.

6) The Thermal Chemistry Free CTP Plates of the outlets produced by our company is accurately restored
The Thermal Chemistry Free CTP Plates produced by our company does not need to be calibrated. It has excellent dot reproducibility and the dot error does not exceed 1%.

4 The Usage of Thermal Chemistry Free CTP Plates products
The Thermal Chemistry Free CTP Plates produced by our company is suitable for negative, processing-free, thermal / ultraviolet photosensitive digital printing plates, and is widely used in commercial, newspaper and packaging printing.

5.The Packaging of Thermal Chemistry Free CTP Plates

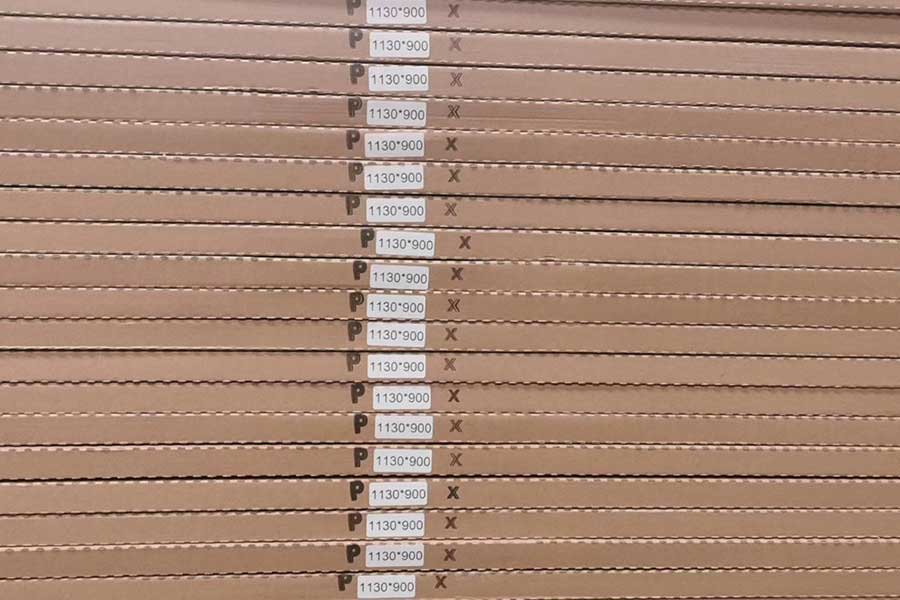

The packaging of Chemistry Free Thermal CTP Plates produced by our company: two coated faces are placed facing each other, separated by neutral backing paper in the middle, the outside is covered with plastic lined black kraft paper and placed in the carton box,each carton box is loaded around 50 -100 pieces,
Then stack the loaded carton boxes neatly on the wooden pallet and protect them with wooden frames or cardboard.
Finally, wrap it with kraft paper or plastic film and tighten by plastic tapes.
Or Packed according to customer requirements.
