1150 h18 CTP aluminum base plate

Writer： admin Time：2021-10-26 18:12 Browse：℃

The basic requirements of CTP plate on the surface of aluminum plate base are clean and flat, without defects such as cracks, corrosion pits, spots, vents, scratches, folds, marks, peeling, pine branch patterns, oil marks, etc; The surface shall be free of non-metallic pressing, sticking, cross skin, cross grain and other defects; Slight color difference, bright bar and other problems are not allowed; There shall be no bulge, ruffle, etc.

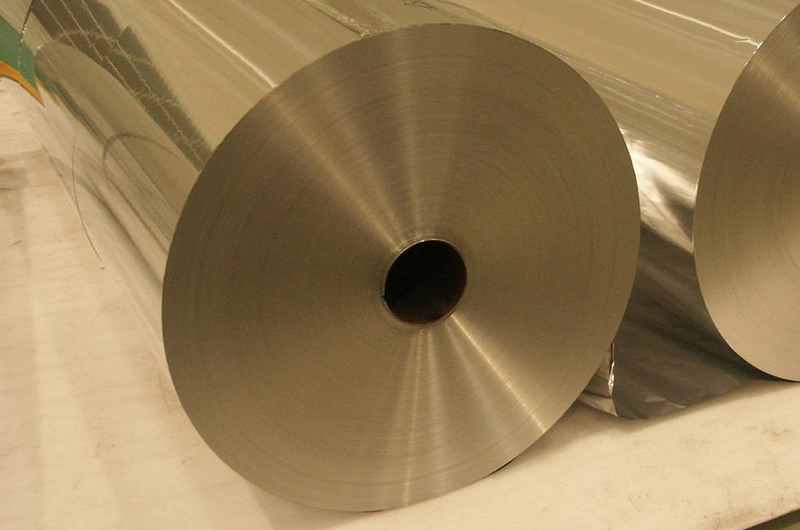

CTP aluminum base plate is usually made of 1150 aluminum alloy in H state. There are three kinds of h18, H22 and H26, all of which are packaged in coiled materials and supported by wooden pallets.



1150 h18 CTP aluminum base plate technical parameters



Alloy	state	thickness	Specifications	Thickness tolerance	Surface roughness（Rα）
1150 CTP aluminum base plate	H18	0.12-0.18m	Coiled material	0.27mm±0.005mm	0.25～0.30μm
	H22
	H26



The thickness of 1150 h18 CTP aluminum base plate is generally 0.280mm, which is slightly thicker than the PS version currently produced (the base thickness of PS version is 0.270mm ± 0.005mm). Some foreign companies use 0.275mm thick aluminum plate base, and the thickness tolerance is ± 0.005mm. The aluminum plate base is thicker, the plate stiffness will be better, and it is not easy to bend.
